SOLUTION > SET-TOP BOX

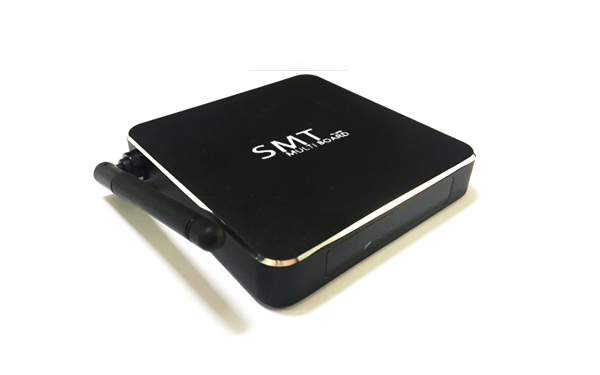

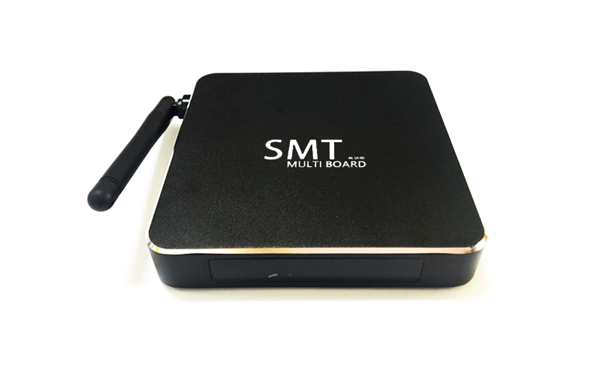

별도의 케이블이 필요없이 무선 Wi-Fi로 네트워크를 통해 PC나 모바일에서 제작한 컨텐츠를 바로 전달 가능하여 쉽고 편리합니다.
USB 포트 2개와 TF(Micro SD)카드 슬롯을 지원하며, HDMI 단자를 통해 Full HD 1080p 해상도의 컨텐츠 재생을 별다른 제약없이 사용가능합니다.
자동 On/Off 기능으로 원하는 시간대에 켜지고 꺼지게 할 수 있습니다. 또한, 전원이 켜졌을 때 따로 설정하지 않아도 컨텐츠가 자동 반복재생 됩니다.

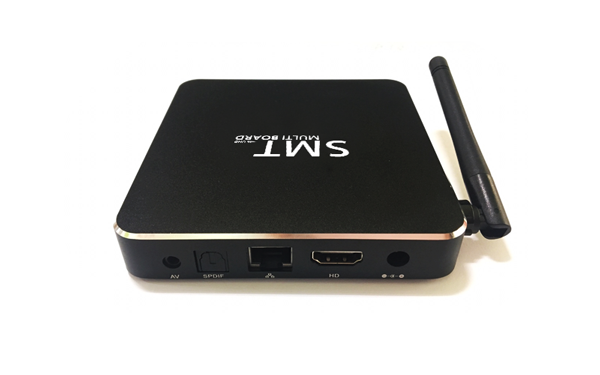

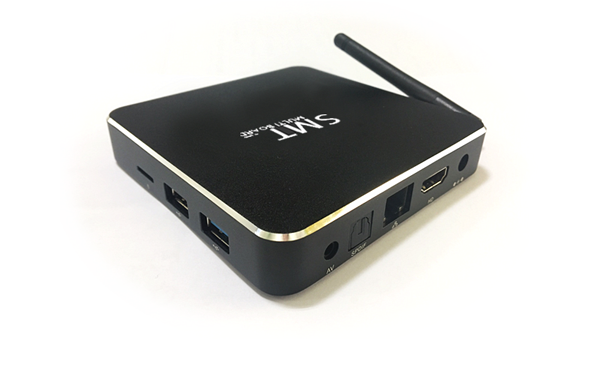

| CPU | Amlogic S905X2 up to 2.0 GHz, Quad core ARM Cortex-A53 |
|---|---|
| RAM | 4G |
| STORAGE | 32G (Option) |
| OS | Android OS 8.1 |
| Resolution Support | 4K (HDMI Support) |
| Support Format | wmv, avi, mp4, mpeg, jpg, jpeg, png, bmp, gif |
| I/O | USB 3.0*1 , USB2.0*1, Micro SD, 3.5 AV, HDMI, Ethernet(RJ45), SPDIF |
| SW | Auto On/Off APP |

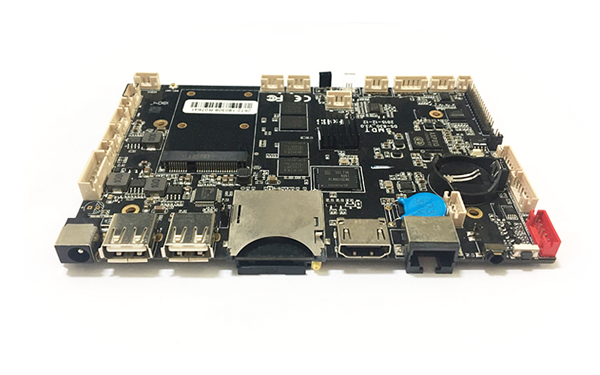

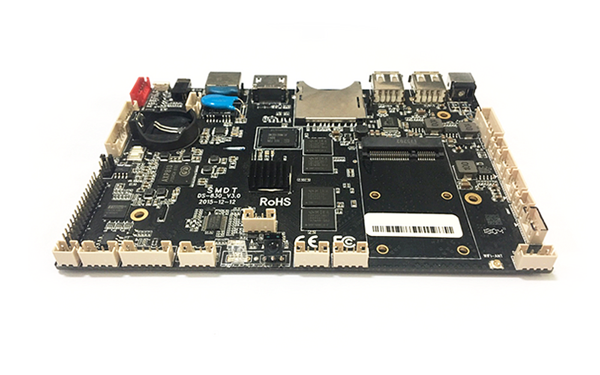

| CPU | A83T , Octa-Core，main frequency 2GHz |
|---|---|
| Internal Memory | 1/2G(Option) |
| Built in Memory | EMMC 4/8/16/32G(option) |
| Built-in ROM | 2KB EEPROM |
| Decoding Definition | maximum support 1080P |
| Operating System | Above Android 6.0 |
| I/O | 2 USB, Micro SD Card, 3.5 AUX, HDMI, Ethernet(LAN) |
| Network Support | 3G、Ethernet, support WiFi/bluetooth 4.0, wireless peripheral extension |
| Video Playing | Support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
| Image Format | Support BMP, JPEG, PNG, GIF |
| USB2.0 Ports | 2 USB HOST, 4 USB ports |
| Serial Ports | 3 serial ports |
| SW | Auto ON/OFF APP |

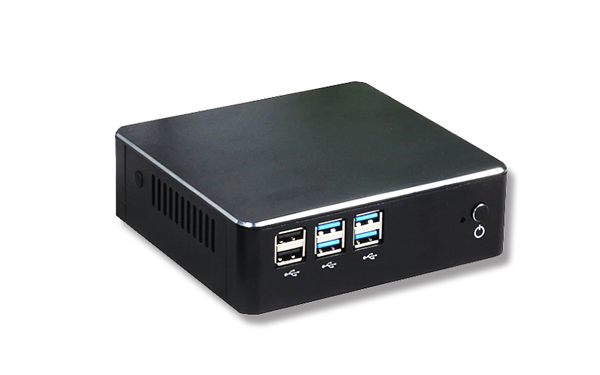

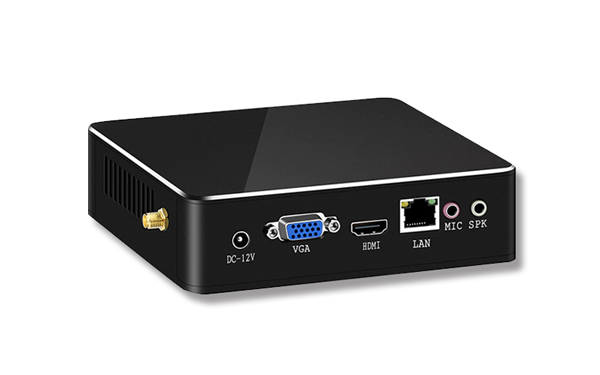

| Processor Model | Core i3 7100U / i5 7200U / i7 7500U |
|---|---|
| Hard Drive | 500GB |
| Memory | 16GB |
| Supported OS | Windows 10 |
| Processor Graphics | Intel HD Graphics 620 |
| Display Output | HDMI, VGA |
| USB Port | 4 USB 3.0, 2*USB 2.0 |
| Wireless | Support wifi 802.11b/b/g/n |
| Motherboard | minifan |
| Dimension | 134 x 127 x 42 mm |

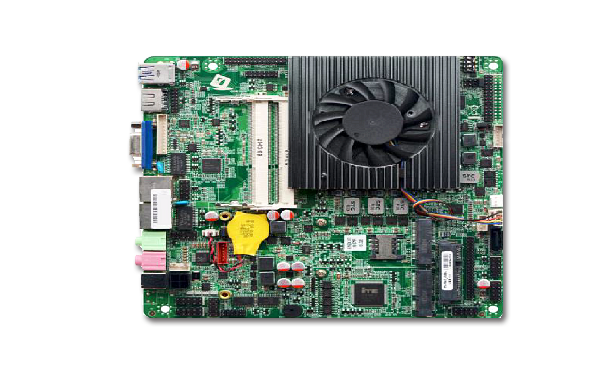

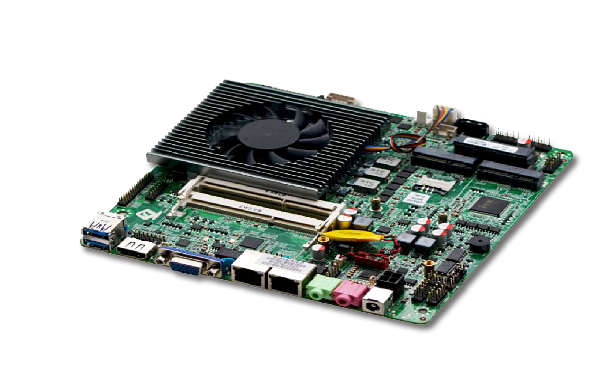

| Processor Model | Intel i5-6360U 2.0GHz dual core processor, TDP 15W |
|---|---|
| Memory | 2*DDR3L SODIMM memory slot, support 1600MHz memory, up to 32GB |
| Chipset | SOC |
| Supported OS | Windows 7/8/10,Linux |
| Display |
Intel Graphics 540 support DirectX 12 OpenGL 4.4,support 4K 1*VGAM support resolution: 1920X1200 60Hz 1*HDMI1.4, support resolution: 4096X2304 24Hz |
| Network | 2*Intel WGL211AT Gigabit LAN, support Wake ON LAN, PXE |
| Storage | 1*SATA3.0 HDD port, transmission fate up to 6Gbps |
| Expansion Slot | 1*Mini-PCIE Slot, support WIFI, 3Gmodule |
| Rear Panel I/O | 2*USB3.0 / 1*HDMI / 1*DB15VGA / 2*RJ45 Gigabit Ethernet LAN Port / 1*Line-out, 1*MIC / 1*12V DC_IN Jack |
| Internal I/O |
1*JVGA1 port 1*12pin(same signal with DB15) 1*FHDMI port 2*8pin(same signal with HDMI) 1*LVDS port 2*15pi, support dual channel 24 bit(with EDP optional) 1*LVDS backlight power supplay port 1*6pin 6*RS232 serial port, COM1/COM2 support the 9th charged function, COM2/COM4 support RS485/RS422 1*PS/2 KB/MS port(red) 1*6pin 6*USB 2.0 port 2*5pin, F_USB4 and usb1 optional 1*Front aution port 2*5pin 1*Front panel switch button and LED indicator port 2*5pin 1*HDD power supply port 1*4pin 1*Power amplifier port 1*4pin 1*SIM socket 1*4pin ATX power connerctor(12V input power power connector optional) 1*PCIE port, 2*15pin, support 4*PCIE x1 signal 1*LPC port, 2*8pin, used for expanding 4*serial port |
| Fan Connector | 1*4pin CPU smart fan connector, 1*3pin system fan connector |
| GPIO | Support 4-way input output GPIO |
| BIOS | 64Mb FLASH ROM |
| Power Supply | DC 12V power adaptor |
| Dimension | 170mm x 170mm |
